SwiftBench
EUMOS 40509 acceleration tests at the customer's site.
Price
€74,900EXW Denmark, excl. VAT
Freight, installation and training are quoted separately.
Request a quote
Book a demoHardware is sold by Pallet Seal ApS, Denmark. We reply with a quote within 2 business days.
Made to order. The quote includes the estimated delivery date.
Within limits (≤ 10 % / ≤ 5 %)
- total length
- 3.5 m
- setup time
- ≈ 20 min
- acceleration range
- 0.3–0.5 g
- max. load
- 1,500 kg

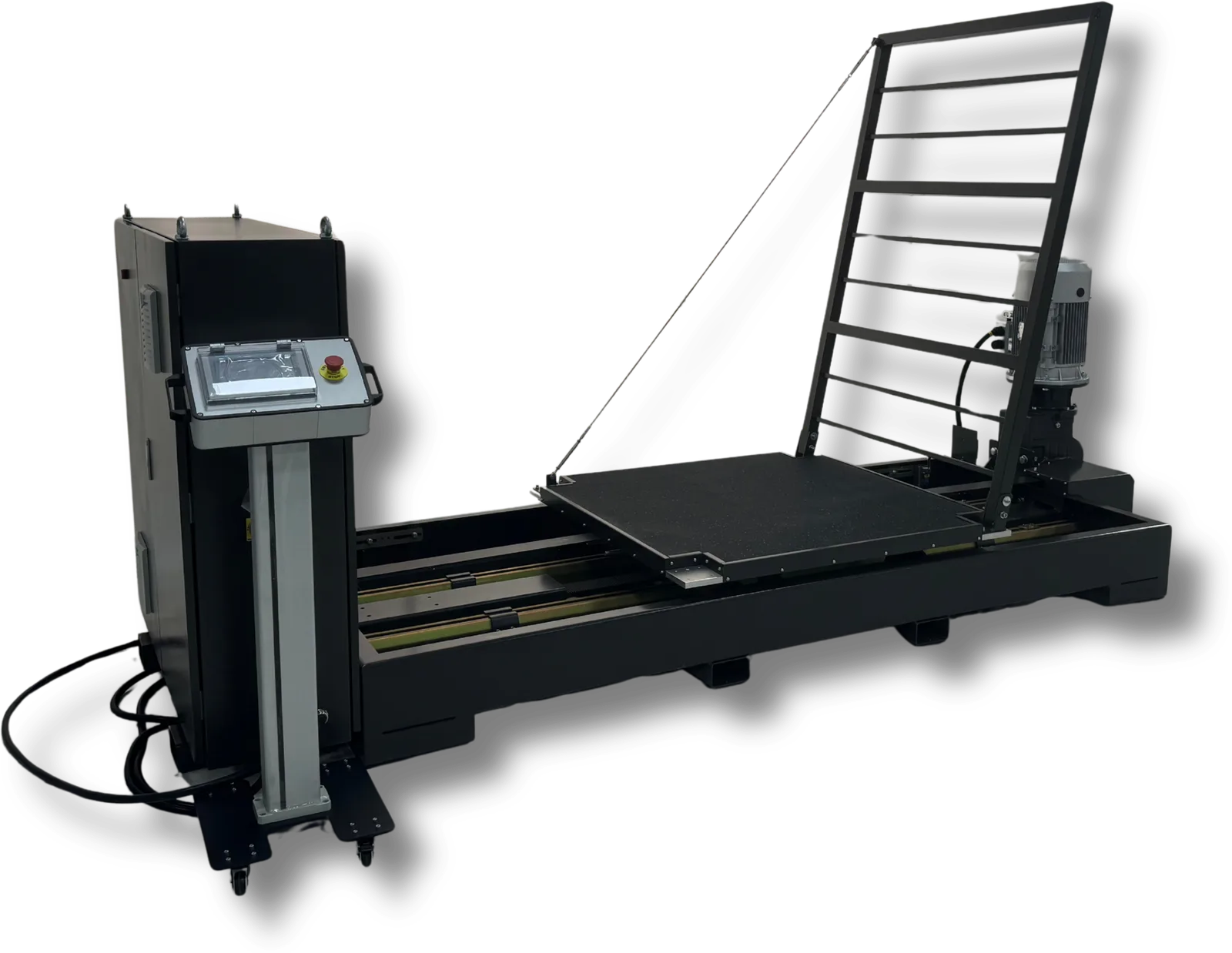

SwiftBench is an EUMOS 40509-compatible acceleration bench, approved for EUMOS certification. It is 3.5 m long, moved by forklift and transported in a standard trailer, so you test the real pallet where it is wrapped.
Built for testing on site
Mobile
Moved by forklift and transported in a standard trailer. No truck, driver or permanent installation needed.
Quick to set up
Ready to test in about 20 minutes. Runs on 380 V; a battery add-on is available on request.
Camera and lighting
Integrated camera system and side lighting for accurate tracking of the pallet's movement.
Tracking and reporting
Tracking software included. Results go into the Palletseal report with the rest of the test.
Photos

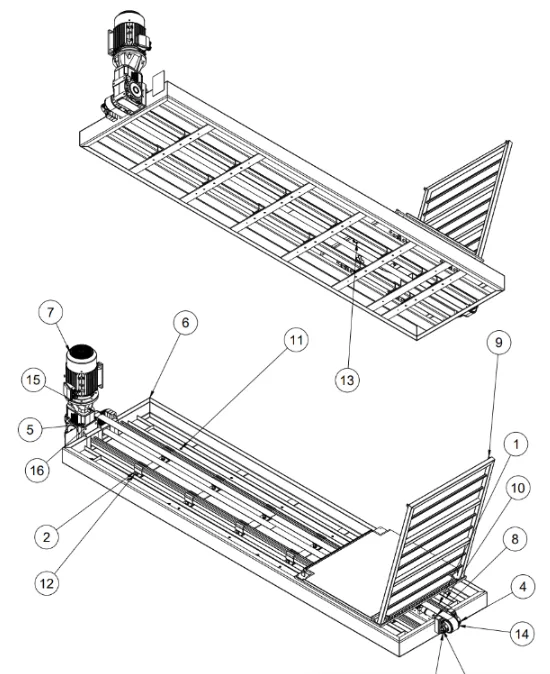

Technical specifications
- Max. pallet size
- 1200 × 1200 mm
- Max. load
- 1,500 kg
- Acceleration range
- 0.3–0.5 g
- Base weight
- 800 kg
- Dimensions (W × L)
- 1.3 m × 3.5 m
- Construction

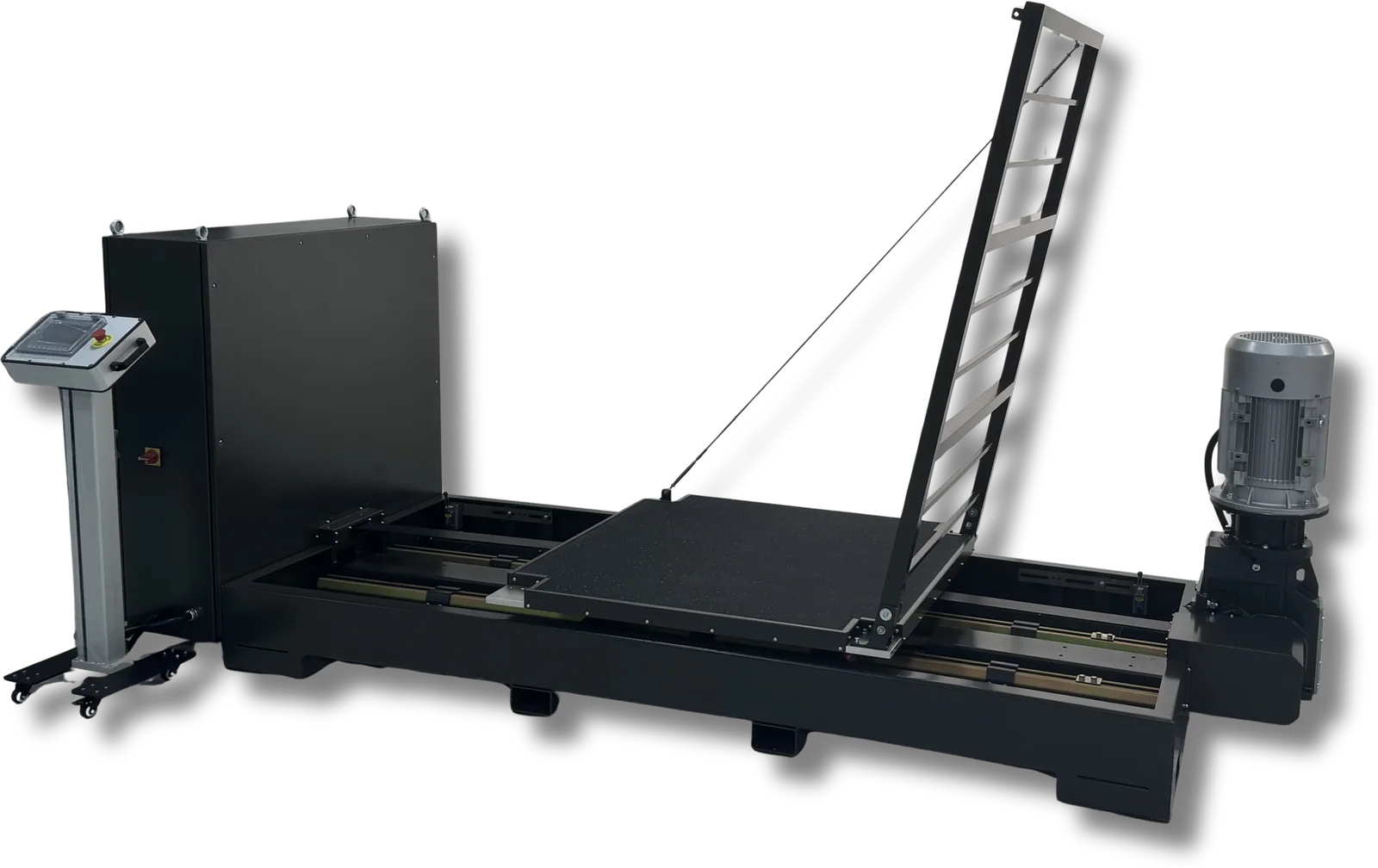

- Heavy-duty steel frame with precision guide rails
- Guide rails
- Precision-mounted, 4-wheel carriage with 4 trolleys, each rated to absorb > 5 kN
- Max. carriage speed
- 1.48 m/s
- Drive system
- Timing belt with centre drive shaft
- Power supply
- 380 V (battery add-on on request)
- Standard
- EUMOS 40509-compatible, approved for EUMOS certification
In the package
- SwiftBench load stability bench (3.5 m), 0.3–0.5 g
- Integrated camera system
- Side lighting for pallet visualisation
- Tracking program with reporting
- 1-day on-site operator training
From quote to first test
Quote
Request a quote on this page. Pallet Seal ApS replies within 2 business days with price, delivery and payment terms.
Order
Accept the quote. We confirm the delivery date and invoice according to the quote.
Delivery
SwiftBench is ready for collection in Denmark (EXW), or we arrange freight on request. We train your operators on site for one day.
First test
Record the test in slo-mo, load it in the app and send the report.
